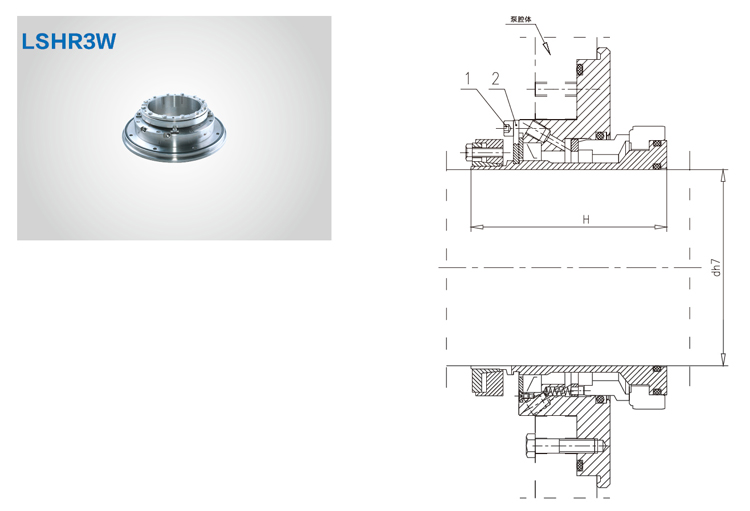

LSHR3W cartridge mechanical seal

external cooling, tightly locked disc drive, single face, assembly type
single face assembly type mechanical seal
external cooling
tightly locked disc drive sliding type

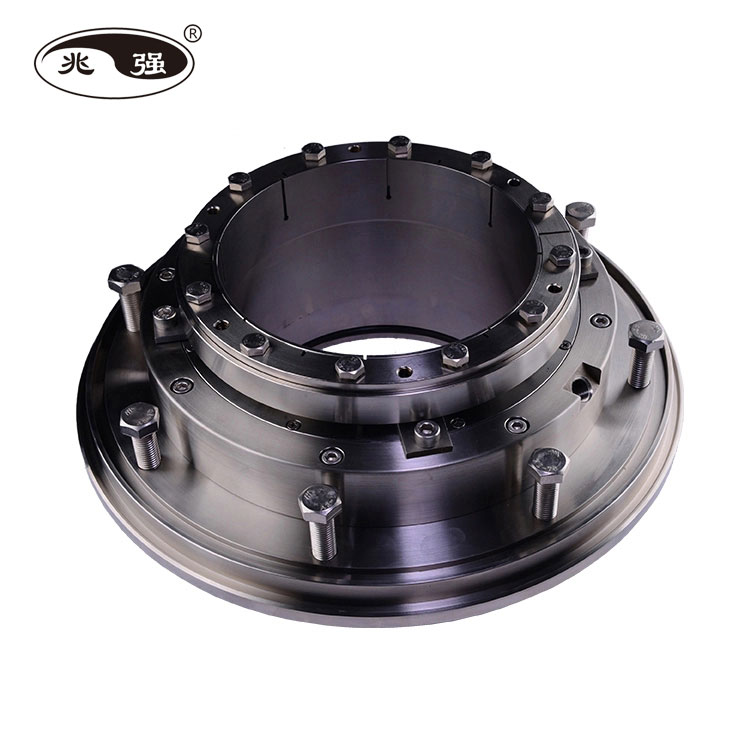

Product description: LSHR3W cartridge mechanical seal
INQUIRY

Application Scopes

Medium	Gypsum slurry, alumina slurry, cement slurry, pulp, sewage, etc.
Concentration	≤30%
Pressure	<1.5MPa
Temperature	<120°C
Linear Velocity	<10m/s

Structural features

1. The structure uses external cooling, single face, assembly, tightly locked disc drive.

2. Flushing water does not enter the pump, does not affect the process medium.

3. The mechanical seal of the structure is independent of the rotation direction, and the friction pairs are hard and hard, and wear resistance is good.

Instructions

1. When installing, lubricating oil should be coated on the inner hole of the sleeve and O-ring seal (EPDM cannot be coated with petroleum lubricating oil), so as to facilitate installation.

2. When the mechanical seal is installed correctly, the outer O-ring and the snap ring shall be taken off before the machine being started.

3. The flushing water can be used as ordinary tap water. The pressure is controlled below 0.05 Mpa. The flushing water can be flowed normally. It is best to into the top and out of from the bottom.
